Sliding enclosure lid

Hypothetical design study · An original fictional scenario; no customer job or manufactured result.

The fictional brief

Assume four small indoor desk enclosures with removable covers, with a nominal outer size of 120 × 80 × 30 mm for this example. The user wants to open a cover by hand and move it along one axis. The object inside is deliberately unspecified; this is not an electrical, protective or safety enclosure specification. Quantity and dimensions are design inputs, not an order history or a stated printer limit.

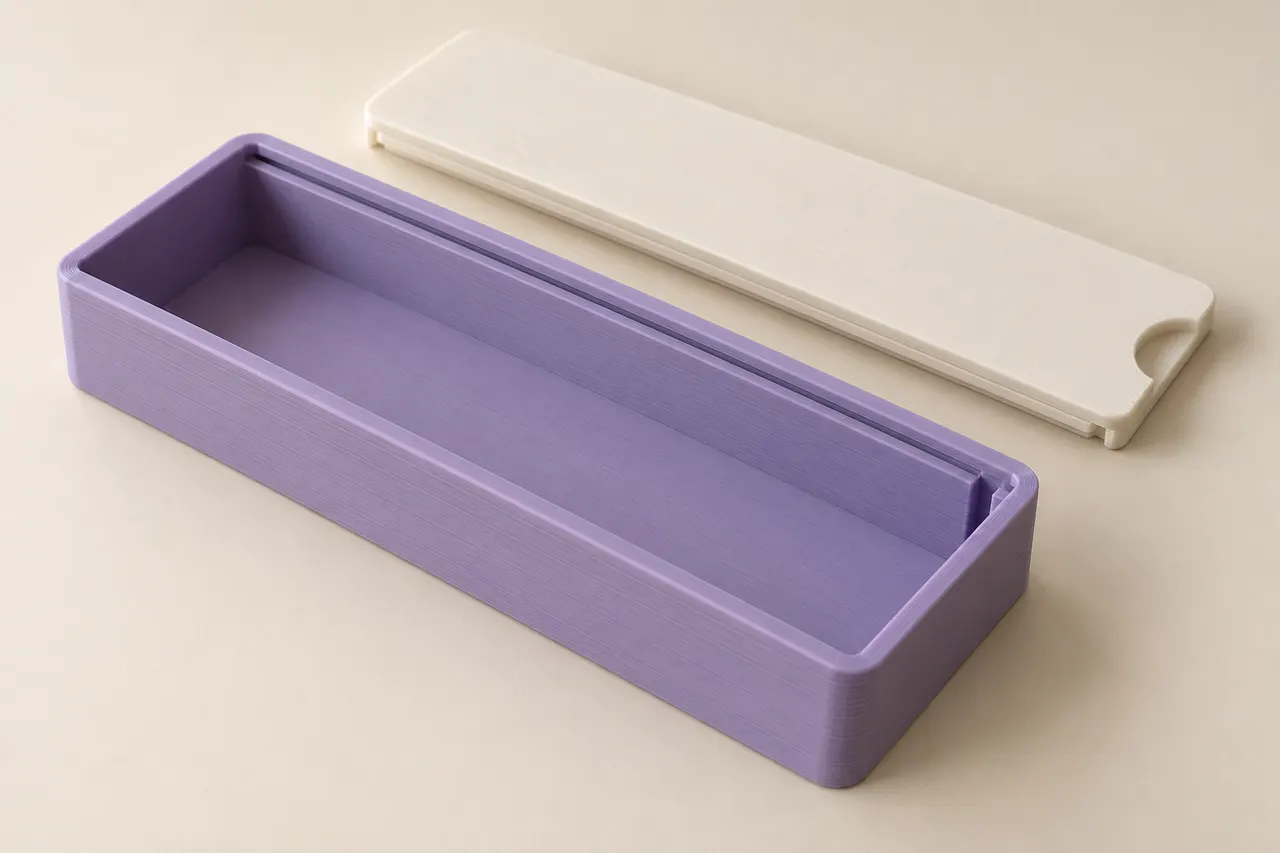

AI-generated fictional lavender enclosure base and separate ivory sliding lid, with a finger recess and visible edge features.
AI-generated illustration

AI-generated concept for a hypothetical sliding enclosure lid. The separated pieces expose the rail and mating edge, while the finger recess suggests a removal point. No customer project or tested fit is depicted.

  1. Rail and entry: identify the surfaces that guide the cover.
  2. Matching lid edge: state the intended relationship, not just an outer size.
  3. Finger recess: check access and removal travel in the intended position.

The decision: movement or fastening?

Approach A — slide-in lid. A tongue-and-groove arrangement could guide the lid without separate screws. The brief would need to identify the rail entry, available travel, stop position and how the lid is retained. More clearance could ease movement but allow more play; a tighter arrangement could bind if the actual parts differ from the intended dimensions. “Fits” needs a description of the behaviour, not only a matching outline.

Approach B — screw-fastened lid. A cover resting on a rim could use separate fasteners to locate and hold it. This would introduce tool access, hole/boss dimensions and a chosen fastening method. It might suit less frequent opening, but its extra features would need designing rather than simply adding screw symbols to the render. No fastener type, insert or screw torque has been selected here.

The sliding arrangement is the illustrated option, not the recommended answer for every enclosure. Define which surfaces contact and whether motion is wanted before choosing the relationship. Formlabs on engineering fits

Orientation is part of the question

The long groove and thin lid edge need considering with the proposed printing orientation and support placement. A surface that looks continuous in CAD may still need a process-specific fit trial. A short interface coupon could compare proposed gaps, but a full-length lid would still need checking: length, bow, stopping and retention are separate questions. Prusa's design guidance

What needs confirming before manufacture?

  • The mating rail/edge dimensions, their reference surfaces and any allowed variation.
  • Whether the lid should slide freely, locate with little play or resist accidental movement.
  • Removal travel and finger/tool access in the actual use position.
  • The exact material/process, environment, orientation and finish at the interface.
  • A physical fit check and an agreed acceptance description for the complete parts; no universal gap or performance is claimed here.

Send the relationship, not only the box.

For a real quote, send both parts at the same intended scale, units and revision, quantity, the marked mating surfaces and the required movement. If the mechanism needs designing, start with CAD help. With ready geometry, start an online quote. The image is a concept; no editable CAD is supplied by this study.

Nested instrument tray

Hypothetical design study · An independently invented desktop-storage scenario, not a completed customer project.

The fictional brief

Assume one removable tray insert holding three anonymous desk objects: a cylindrical handle, a rectangular block and a round disc. The insert would sit inside an outer tray on a dry indoor desktop. The objects have no calibration, medical or load-bearing role. The illustrative outlines do not specify actual sizes. The aim is easy retrieval and a clear layout, not a validated protective transport system.

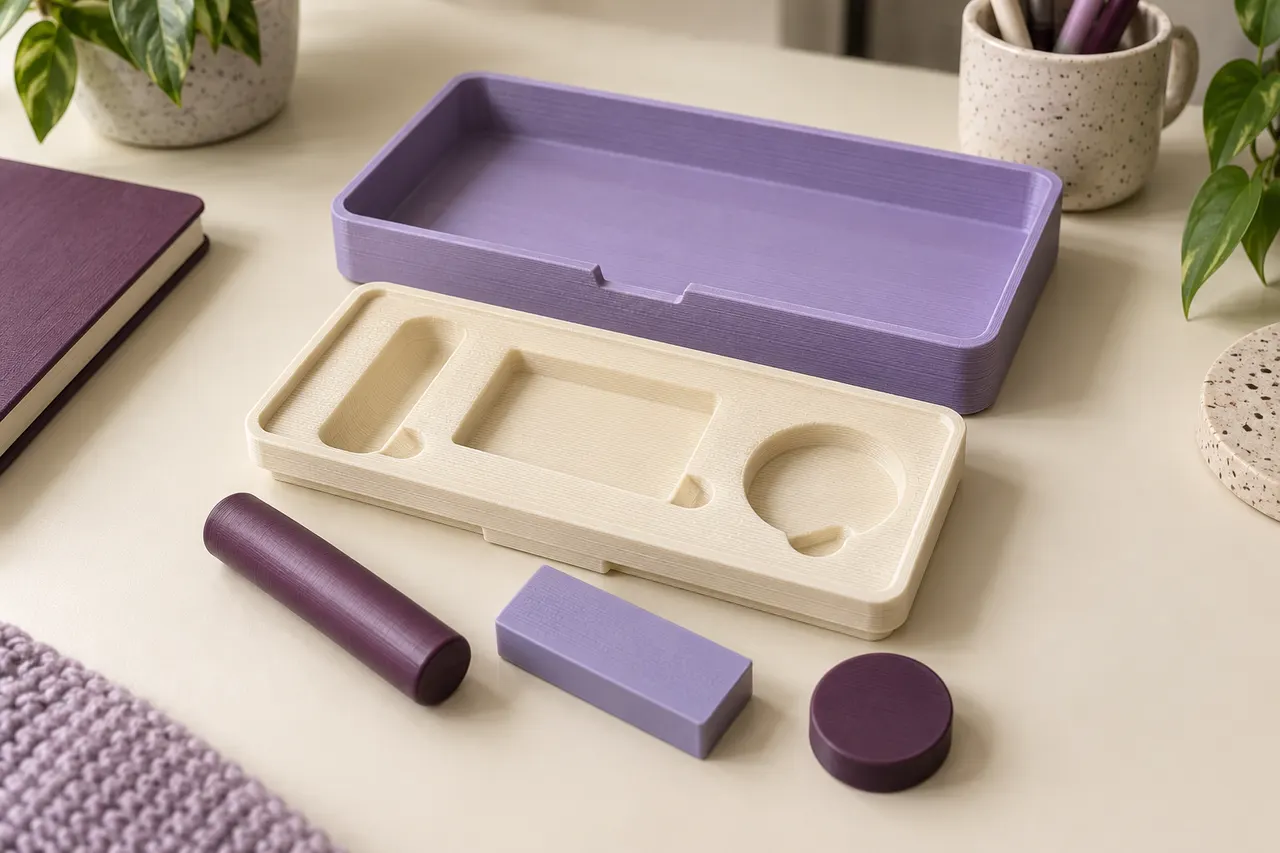

AI-generated hypothetical ivory three-pocket insert beside a lavender outer tray, with anonymous cylinder, block and disc objects.
AI-generated illustration

AI-generated concept for a hypothetical instrument tray. Empty pocket outlines, finger scoops and a separate outer tray make the fit questions visible. The anonymous objects are invented; no customer job, CAD geometry or validated stacking feature is supplied.

  1. Pocket outlines: confirm the actual object shapes and heights.
  2. Finger access: decide how each object can be lifted out.
  3. Outer tray and locating lip: specify seating; stacking remains a separate unresolved requirement.

The decision: measured outlines or an initial sketch?

Approach A — measured-object brief. Supply the maximum object outlines, heights, projecting features and orientation in the tray. The designer could use these to propose pocket shapes and define the contact/clearance intended for each object. Measurements still need a stated reference and a check that the objects represented are the ones that will be used; this route does not automatically guarantee fit.

Approach B — rough-sketch brief. A sketch could communicate the order of the objects, a preferred layout and approximate hand access. It is a useful starting point for CAD scope. It leaves pocket dimensions, depths and the insert-to-outer-tray relationship unresolved, so its proportions should not be converted into manufacture-ready dimensions without further information.

The useful distinction is how much is known about each interface. A measured outline reduces one uncertainty; it does not decide the required looseness, access or material by itself.

Three relationships to mark

  1. Object to pocket: show the widest outline, seating depth and any projection that must remain clear. A pocket intended to locate an object is a different brief from generous storage space.
  2. Hand to object: reserve a finger scoop or edge access where the object would otherwise sit flush. The actual user, object height and retrieval direction need considering.
  3. Insert to outer tray: identify the supporting rim and any locating/stacking lip. If stacking is wanted, show how an upper tray would rest without pressing on the stored objects. The rendered lip is schematic; no stack clearance, capacity or stability is established.

What needs confirming before manufacture?

Confirm the actual objects, dimensions, tolerances/variation, coatings or delicate faces, pocket depths, lifting access and outer-tray relationship. State whether the tray is only stationary storage or will be carried/stacked, along with the environment and cleaning requirement. Exact material and geometry need assessment for that use. A physical object-in-pocket and insert-in-tray check would be needed before claiming the result.

Send enough information to resolve the unknowns.

For CAD help, send a dimensioned outline or sketch of the objects and the proposed layout, clearly separating measured values from estimates. For a print quote on ready geometry, include the insert and outer tray files, scale, revision, quantity and any critical fits. Read the dimension checklist or start an online quote. No CAD model or tested tray is supplied here.
